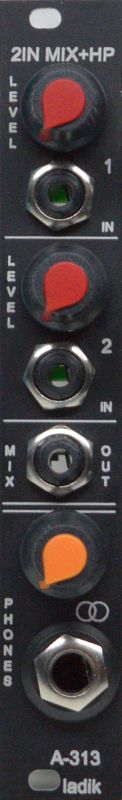

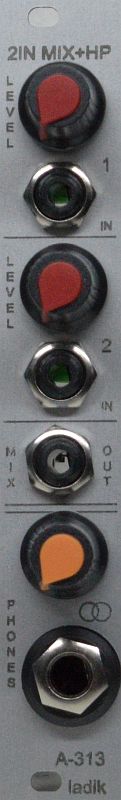

A-313 Two-channel mono mixer with headphones output module for Eurorack / Doepfer A100 system.
Upper part: two input jacks (mono) with level knobs, mix output (mono). Lower part: headphones output (TRS).

Jumpers behind input jacks can be set to jumper header for DC-coupling (CV) or removed for AC-coupling (audio).

Width: 4TE/ 4HP/ 20mm.
Depth: 40mm /1,6″ max.
Current: 20mA max.
Power cable included.

Double check power connection before powering your system please.
„Red strip“ means -12V connector side in Eurorack standards.
In some power distribution systems connector key can be reverted. In this case cut connector key and plug power connector right way (with respect to red strip) or use different power cable appropriate to your power system.
